Product Type: |
Wall-mounted Lithium Battery |
Capacity Options: |
100Ah / 200Ah |
Battery Chemistry: |
LiFePO4 Lithium Battery |
Cycle Life: |
≥ 6000 times @ 80% DOD, 25 °C |
Cells In Series: |
16S |

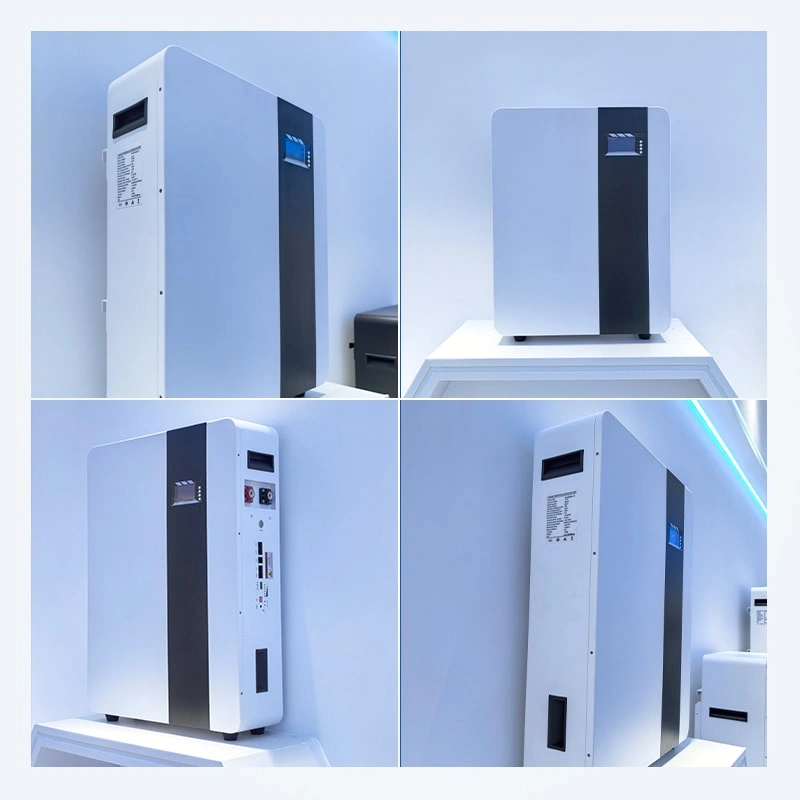

51.2V Wall-Mounted Lithium Battery for Home Backup Power and Energy Storage
The TY-LVW3 51.2V is a 51.2V 200Ah 10kWh wall-mounted LiFePO4 battery designed for residential energy storage. It delivers over 6,000 cycles at 90% depth of discharge (DoD) with a 10-year design life, supports most 48V inverters, and features a high-eciency DC-coupled architecture.
Note: Please read the safety and installation manual before using the product. We reserve the right of finalinterpretation.
The specifications in this datasheet are subject to change without notice.
Features
Flexible Expansion
- Up to 16 units in parallel
- Capacity: 5.12-163.8 kWh
1C Discharge Rate
- Supports multiple loads simultaneously for reliable power delivery
Automatic Self-heating
- Operating temperature–20°C to 55°C (optional)
Ultra Safe
- Intelligent fire extinguishing system detects and suppresses fire within 5s (optional)
Easy Installation
- Wall-mounted for optimized space utilization
Smart Management
- Real-time monitoring, remote control and OTA updates
Product Description
| 100Ah | 200Ah | |
| Product Model | TY-LVW3 51.2V | TY-LVW3 51.2V |
| Cells In Series | 16S | 16S |
| Rated Energy (KWh) | 5.12 | 10.24 |
| Rated Voltage (V) | 51.2 | 51.2 |
| Charging Voltage (V) | 58.4 | 58.4 |
| Discharge Cut-off Voltage (V) | 42 | 42 |
| Standard Charge Current (A) | 20 | 40 |
| Maximum Charging Current (A) | 100 | 100 |
| Maximum Discharge Current (A) | 100 | 100 |
| Features | ||
| Cycle Life | ≥6000 times @ 80% DOD, 25 °C | ≥6000 times @ 80% DOD, 25 °C |
| Methods Of Communication | RS232/RS485/CAN | RS232/RS485/CAN |
| Charging Temperature | 0~60 °C | 0~60 °C |
| Discharge Temperature | -10~65 °C | -10~65 °C |
| How It Is Displayed | LCD display | LCD display |
| IP Protection | IP 21 | IP 21 |
| Conventional | ||
| Product Dimensions (L×W×Hmm) | 560×440×151 | 680×520×151 |
| Net Weight (Kg) | 44 | 80 |
| Packing Dimensions (L×W×Hmm) | 632×512×255 | 755×595×340 |
| Gross Weight (Kg) | 50 | 94 |
Product Advantages
Compact & Elegant Design
The slim wall-mounted enclosure integrates neatly into garages, utility rooms, or indoor technical spaces without occupying valuable floor space.
Lower Household Electricity Bills
Store low-cost or self-generated solar electricity for use during peak tariff periods, reducing monthly energy expenses.
Reliable Emergency Backup
Automatically supplies stored energy during grid failures, keeping essential home appliances running.
Long Service Life
Premium LiFePO₄ cells provide over 6,000 cycles, delivering years of reliable daily operation.
Smart Energy Management
Compatible with modern Energy Management Systems (EMS) and mobile monitoring platforms for convenient real-time performance tracking.
Technical Highlights
- Battery Chemistry: LiFePO₄ (LFP)
- Nominal Voltage: 51.2V
- Capacity Options: 100Ah / 200Ah
- Wall-mounted Design
- Intelligent Battery Management System
- CAN / RS485 Communication
- Modular Expansion
- Long Cycle Life
- High Charge & Discharge Efficiency
- Residential Solar System Compatible
Why Choose a Wall-mounted Lithium Battery?
Wall-mounted lithium batteries are specifically designed for modern residential energy storage, combining compact installation with reliable performance.
Save Valuable Space
Unlike floor-standing batteries, wall-mounted systems free up floor space while maintaining easy access for maintenance.
Increase Solar Energy Utilization
Store excess solar power during the day and use it at night, reducing dependence on grid electricity.
Improve Home Energy Security
Provide automatic backup power for essential household appliances during outages.
Easy Installation
The lightweight, integrated design allows quick installation and seamless connection to residential solar systems.
Scalable Energy Storage
Choose between 100Ah and 200Ah models or expand your system as household electricity demand increases.
Typical Applications
Residential Off-Grid Solar Systems
Perfect for homes located in remote areas or regions with limited access to the utility grid.
Suitable for:
- Rural homes
- Villas
- Mountain cabins
- Farms
- Holiday homes
Benefits:
- Reliable off-grid electricity
- Greater energy independence
- Reduced diesel generator usage
- Continuous day-and-night power supply

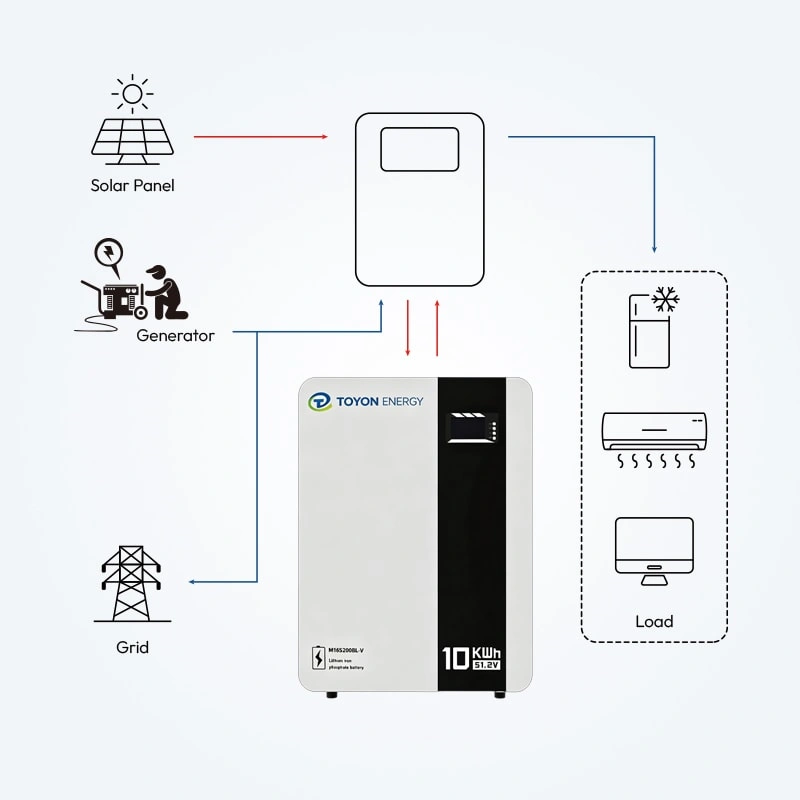

Residential Hybrid Solar Systems
Designed for homeowners who want to combine solar energy with grid power for maximum efficiency.
Benefits:
- Store excess daytime solar energy
- Reduce household electricity bills
- Increase solar self-consumption
- Automatic backup during power outages
- Intelligent energy management
Residential Backup Power Systems
Provides uninterrupted electricity during utility outages.
Ideal for powering:
- Lighting
- Refrigerators
- Wi-Fi routers
- Home offices
- Security systems
- Essential household appliances
Benefits:
- Fast backup response
- Stable household electricity
- Improved family comfort and safety
Small Commercial Solar Storage
Suitable for small businesses with moderate energy storage requirements.
Applications include:
- Retail stores
- Coffee shops
- Clinics
- Offices
- Convenience stores
The battery helps reduce electricity costs while providing reliable backup power.
Solar Self-Consumption Optimization
Store surplus solar energy generated during the day and use it when electricity demand increases in the evening.
This improves renewable energy utilization while reducing dependence on the utility grid.
FAQs
1. What is the difference between 100Ah and 200Ah wall-mounted batteries? difference between 280Ah and 314Ah lithium batteries?
The 200Ah model offers larger energy storage capacity and longer backup duration, while the 100Ah version is more suitable for basic residential energy storage needs.
2. Why are wall-mounted lithium batteries popular for home energy systems?
Wall-mounted batteries save installation space, provide a clean appearance, and are ideal for residential solar storage applications with limited floor area.
3. Can a 51.2V 100Ah battery support essential home backup power?
Yes. A 100Ah battery can support basic household loads such as lighting, routers, TVs, and small appliances during power outages.
4. Is the 200Ah model better for higher daily electricity consumption?
Yes. The 200Ah battery is designed for users with greater energy demand or longer backup time requirements.
5. Do wall-mounted lithium batteries support solar charging?
Yes. Both 100Ah and 200Ah models are commonly used with solar inverters and photovoltaic systems for solar energy storage.
6. Can multiple wall-mounted batteries be expanded together?
Yes. Many wall-mounted lithium battery systems support parallel connection, allowing users to increase storage capacity as energy demand grows.
