Product Type: |
Rack-mounted Battery |
Capacity Options: |
100Ah / 200Ah |
Battery Chemistry: |
LiFePO4 Lithium Battery |
Cycle Life: |
≥ 6000 times @ 80% DOD, 25 °C |

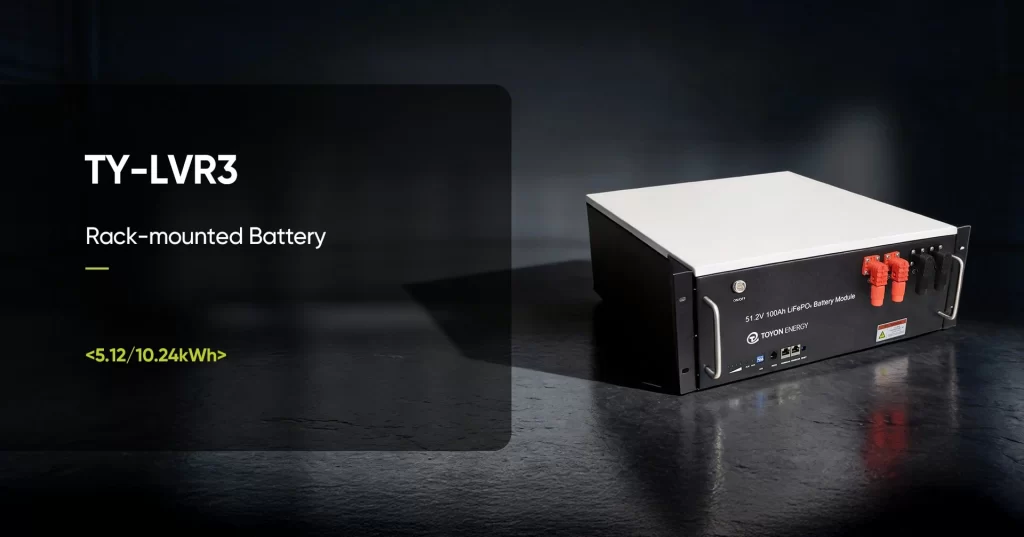

51.2V 100Ah 200Ah Rack-Mounted Lithium Battery for Energy Storage Systems
The TY-LVR3 51.2V is designed for residential and small commercial applications. It supports up to 16 units in parallel, with an energy capacity ranging from 5.12 kWh to 163.8 kWh. Featuring a 1C discharge rate, high cycle life, and extended lifespan, it ensures reliable and worry-free power supply.
Note: Please read the safety and installation manual before using the product. We reserve the right of finalinterpretation.
The specifications in this datasheet are subject to change without notice.
Features
Flexible Expansion
- Up to 16 units in parallel
- Capacity: 5.12-163.8 kWh
1C Discharge Rate
- Supports multiple loads simultaneously for reliable power delivery
Automatic Self-heating
- Operating temperature–20°C to 55°C (optional)
Ultra Safe
- Intelligent fire extinguishing system detects and suppresses fire within 5s (optional)
Easy Installation
- Rack-mounted for optimized space utilization
Smart Management
- Real-time monitoring, remote control and OTA updates
Product Description
| 100Ah | 200Ah | |
| Product Model | TY-LVR3 51.2V | TY-LVR3 51.2V |
| Cells In Series | 16S | 16S |
| Rated Energy (KWh) | 5.0 | 10.24 |
| Rated Voltage (V) | 51.2 | 51.2 |
| Charging Voltage (V) | 58.4 | 58.4 |
| Discharge Cut-off Voltage (V) | 42 | 42 |
| Standard Charge Current (A) | 20 | 40 |
| Maximum Charging Current (A) | 100 | 200 |
| Maximum Discharge Current (A) | 100 | 200 |
| Features | ||
| Cycle Life | ≥6000 times @ 80% DOD, 25 °C | ≥6000 times @ 80% DOD, 25 °C |
| Methods Of Communication | RS485/CAN | RS485/CAN |
| Charging Temperature | 0~60 °C | 0~60 °C |
| Discharge Temperature | -10~65 °C | -10~65 °C |
| How It Is Displayed | / | / |
| IP Protection | IP 21 | IP 21 |
| Conventional | ||

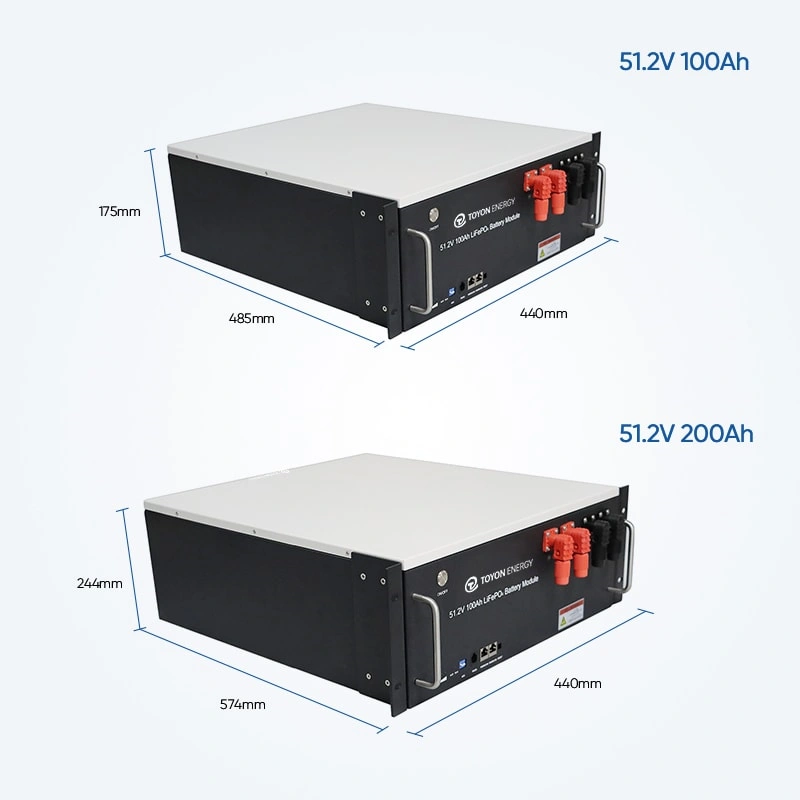

| Product Dimensions (L×W×Hmm) | 485×440×175 | 574×440×244 |
| Net Weight (Kg) | 44 | 79 |
| Packing Dimensions (L×W×Hmm) | 550×525×230 | 755×545×550 |
| Gross Weight (Kg) | 47 | 79 |
Product Advantages
Space-Efficient Installation
The rack-mounted design makes efficient use of cabinet space and simplifies system integration in residential, commercial, and telecom environments.
Easy System Expansion
Parallel connection capability allows users to increase battery capacity as energy demand grows.
Reliable Long-Term Performance
High-quality LiFePO₄ cells and intelligent BMS ensure stable performance and long service life with minimal maintenance.
Smart Monitoring & Management
Supports remote monitoring and integration with Energy Management Systems (EMS) for real-time battery diagnostics and operational optimization.
Cost-Effective Energy Storage
Provides an economical solution for reducing electricity costs, improving energy security, and maximizing renewable energy utilization.
Technical Highlights
- Battery Chemistry: LiFePO₄ (LFP)
- Nominal Voltage: 51.2V
- Capacity Options: 100Ah / 200Ah
- Rack-mounted Design
- Standard 19-inch Cabinet Installation
- Intelligent Battery Management System
- CAN / RS485 Communication
- Parallel Expansion Support
- High Charge & Discharge Efficiency
- Long Cycle Life
Typical Applications
Commercial & Industrial Off-Grid Solar Systems
Ideal for remote commercial sites requiring reliable and independent power.
Suitable for:
- Farms
- Small factories
- Workshops
- Remote offices
- Construction sites
Benefits:
- Reliable off-grid electricity
- Lower diesel fuel consumption
- Stable solar energy storage
- Reduced operating costs
Commercial & Industrial Grid-Tied Energy Storage
Helps businesses optimize electricity usage while remaining connected to the utility grid.
Suitable for:
- Office buildings
- Retail stores
- Warehouses
- Restaurants
- Small manufacturing facilities
Benefits:
- Peak shaving
- Load shifting
- Lower electricity bills
- Higher solar self-consumption
Commercial Backup Power Systems
Ensures uninterrupted power during utility failures.
Suitable for:
- Telecom stations
- Server rooms
- Small data centers
- Medical clinics
- Financial institutions
Benefits:
- Fast backup response
- Stable power supply
- Equipment protection
- Business continuity
Residential Off-Grid Solar Storage
Designed for homeowners seeking reliable energy independence.
Suitable for:
- Villas
- Rural homes
- Cabins
- Vacation homes
Benefits:
- Store daytime solar energy
- Reliable household electricity
- Quiet and maintenance-free operation
- Expandable battery capacity

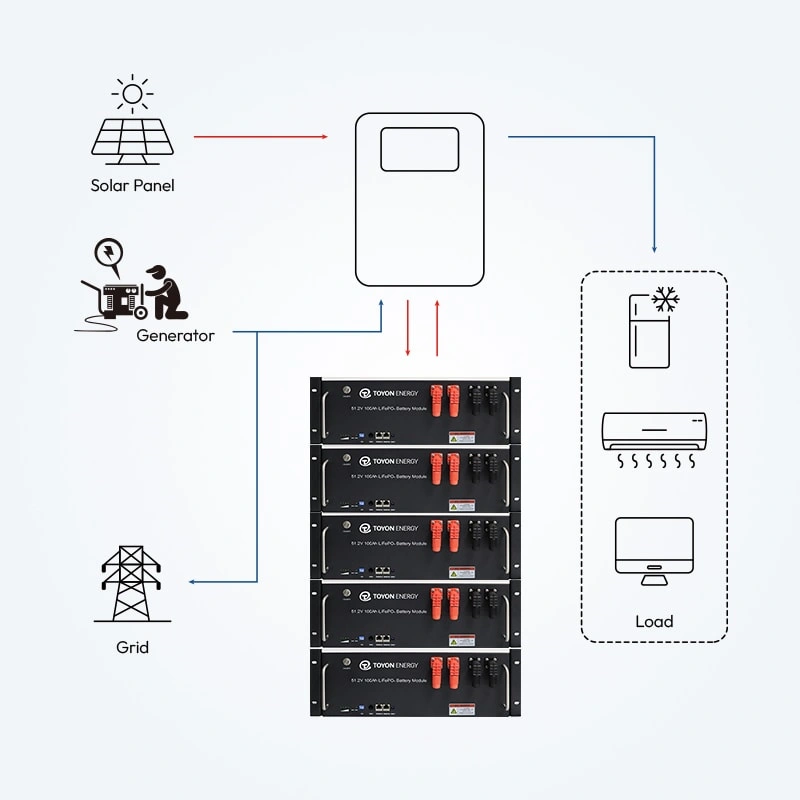

Residential Hybrid Solar Systems
Works seamlessly with hybrid inverters to improve household energy efficiency.
Benefits:
- Maximize solar energy utilization
- Reduce electricity bills
- Backup power during outages
- Intelligent energy management
Why Choose a Rack-mounted Lithium Battery?
Rack-mounted lithium batteries provide a compact, modular, and highly organized energy storage solution for applications where space efficiency and system scalability are important.
Standardized Installation
The 19-inch rack design allows easy integration into existing battery cabinets, telecom racks, and server rooms, simplifying installation and maintenance.
Flexible Expansion
Additional battery modules can be connected in parallel to increase storage capacity without redesigning the entire system.
High Reliability
Advanced LiFePO₄ cells and an intelligent BMS deliver stable performance, enhanced safety, and long-term operational reliability.
Wide Application Compatibility
Suitable for residential solar storage, telecom backup, UPS systems, commercial energy storage, and distributed renewable energy projects.
Lower Total Cost of Ownership
Long cycle life, low maintenance requirements, and high energy efficiency help reduce lifetime operating costs.
FAQs
1. What is the difference between 100Ah and 200Ah wall-mounted batteries? difference between 280Ah and 314Ah lithium batteries?
The 200Ah model offers larger energy storage capacity and longer backup duration, while the 100Ah version is more suitable for basic residential energy storage needs.
2. Why are wall-mounted lithium batteries popular for home energy systems?
Wall-mounted batteries save installation space, provide a clean appearance, and are ideal for residential solar storage applications with limited floor area.
3. Can a 51.2V 100Ah battery support essential home backup power?
Yes. A 100Ah battery can support basic household loads such as lighting, routers, TVs, and small appliances during power outages.
4. Is the 200Ah model better for higher daily electricity consumption?
Yes. The 200Ah battery is designed for users with greater energy demand or longer backup time requirements.
5. Do wall-mounted lithium batteries support solar charging?
Yes. Both 100Ah and 200Ah models are commonly used with solar inverters and photovoltaic systems for solar energy storage.
6. Can multiple wall-mounted batteries be expanded together?
Yes. Many wall-mounted lithium battery systems support parallel connection, allowing users to increase storage capacity as energy demand grows.
