Model Number: |
TY-N20-96HG |
Power Range: |
455W-475W |
Cell Type: |
N- type Mono-crystalline |
Size: |
1762×1134×30mm |
Warranty: |
30 Years |
No. of cells: |
96(48×2) |

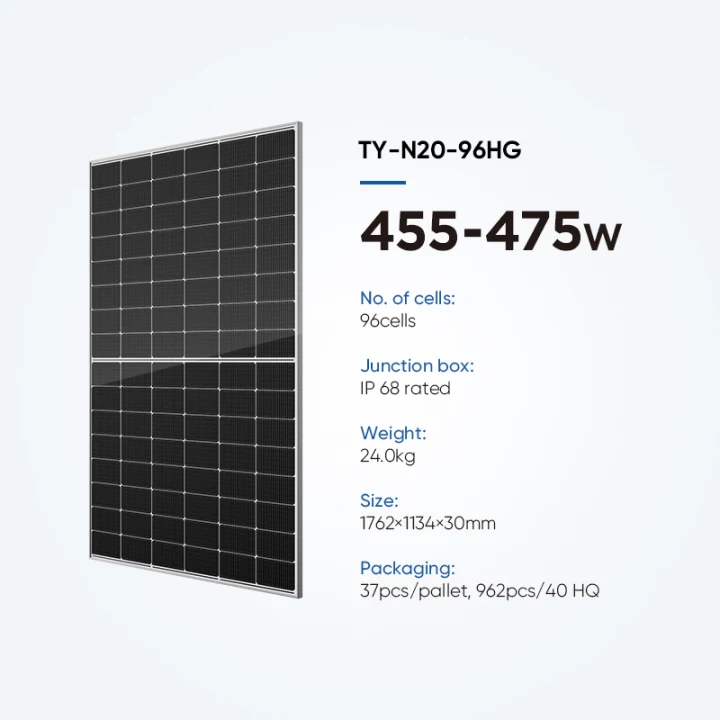

455W-475W Monocrystalline Solar Panels Supplier for Commercial & Industrial Solar Projects
The 455-475W solar panel is engineered for residential, commercial, and small-scale industrial projects. Featuring advanced monocrystalline technology, it delivers high efficiency, reliable performance, and long-term energy savings for rooftop and off-grid applications.
NOTE：Please read the safety and installation manual before using the product. We reserve the right of final interpretation.
The specifications in this datasheet are subject to change without notice.
Detail Parameters
ELECTRICAL CHARACTERISTICS (STC) TY-N20-96HG
| Maximum Power (Pm) W | 455 | 460 | 465 | 470 | 475 |
| Maximum Power Voltage (Vm) | 30.48 | 30.71 | 30.94 | 31.17 | 31.40 |
| Maximum Power Current (Im) | 14.93 | 14.98 | 15.03 | 15.08 | 15.13 |
| Open Circuit Voltage (Voc) | 36.23 | 36.40 | 36.57 | 36.74 | 36.91 |
| Short Circuit Current (Isc) | 15.71 | 15.76 | 15.81 | 15.86 | 15.91 |
| Module Efficiency | 22.77 | 23.02 | 23.27 | 23.52 | 23.77 |
STC: AM=1.5, irradiance=1000W/m², module temperature=25°C
Scenario Application
Residential Rooftop Solar Systems
The 455-475W solar panels are ideal for residential rooftop installations, providing homeowners with reliable and efficient power generation. Their compact design and high energy output help maximize roof space utilization while reducing electricity bills and increasing energy independence.
Commercial Buildings
Designed for offices, shopping centers, hotels, and other commercial facilities, these modules deliver stable power production and support long-term energy savings. Their high efficiency makes them an excellent choice for businesses seeking to lower operating costs and achieve sustainability goals.
Industrial Facilities
For factories, warehouses, and manufacturing plants with high energy demands, 455-475W solar panels offer dependable performance and enhanced durability. They help industrial users reduce reliance on grid electricity, optimize energy consumption, and improve overall operational efficiency.
Distributed Solar Projects
The 455-475W modules are well-suited for distributed solar projects, including community solar systems and decentralized power generation applications. Their reliable output, easy installation, and scalability make them an ideal solution for EPC contractors, developers, and investors looking to maximize project returns and long-term performance.
455W-475W Solar Panel Specifications
| Item | Specification |
|---|---|
| Cell Type | N-type Mono-crystalline |
| No. of cells | 96 (48×2) |

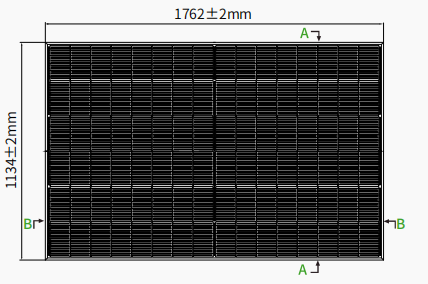

| Dimensions | 1762×1134×30 mm |
| Weight | 24.0 kg |
| Front Glass | 2.0 mm, Anti-reflection Coating |
| Back Glass | 2.0 mm, Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Output Cables (Including Connector) | 4.0 mm² (+): 400 mm, (-): 200 mm or Customized Length |
Packing Configuration
| Container | 40‘HC |
| Pieces per Pallet | 37 pcs |
| Pallet Dimensions | 1792×1140×1249 mm |
| Pieces per Container | 962 pcs |
FAQs
1. Will 455-475W solar panels work on cloudy or rainy days?
Yes. Although power generation will be lower than on sunny days, 455-475W solar panels can still produce electricity under cloudy or low-light conditions. Modern monocrystalline technology helps maintain stable performance throughout the year.
2. Can 455-475W solar panels provide power during a blackout?
By themselves, grid-tied solar panels automatically shut down during power outages for safety reasons. However, when paired with a battery storage system and a hybrid inverter, they can provide backup power during blackouts.
3. Are 455-475W solar panels suitable for hot climates?
Yes. These panels are designed to operate efficiently in high-temperature environments and are widely used in regions with strong sunlight, including Africa, the Middle East, Southeast Asia, and South America.
4. Do solar panels require regular maintenance?
Solar panels require very little maintenance. Periodic cleaning to remove dust, leaves, or debris is usually enough to maintain optimal performance.
5. Which inverter is compatible with 455-475W solar panels?
These modules are compatible with most string inverters, hybrid inverters, and off-grid inverters from leading brands. The inverter should be selected based on the total system voltage, current, and desired application.
6. How do I choose between 455W, 465W, and 475W solar panels?
The choice depends on your energy requirements, available installation space, and budget. Higher wattage modules generate more electricity per panel and can help reduce the number of modules needed for a project.
